Getting Started with AWS Gateway API Controller

This guide helps you get started using the controller.

Following this guide, you will:

• Set up service-to-service communications with VPC Lattice on a single cluster.
• Create another service on a second cluster in a different VPC, and route traffic to that service across the two clusters and VPCs.

Using these examples as a foundation, see the Concepts section for ways to further configure service-to-service communications.

Prerequisites

Before proceeding to the next sections, you need to:

• Create a cluster gw-api-controller-demo with the controller following the AWS Gateway API Controller installation guide on Amazon EKS.

• Clone the AWS Gateway API Controller repository.

  git clone https://github.com/aws/aws-application-networking-k8s.git
  cd aws-application-networking-k8s


  - Set the AWS Region of your cluster.

  export AWS_REGION=<cluster_region>


Single cluster

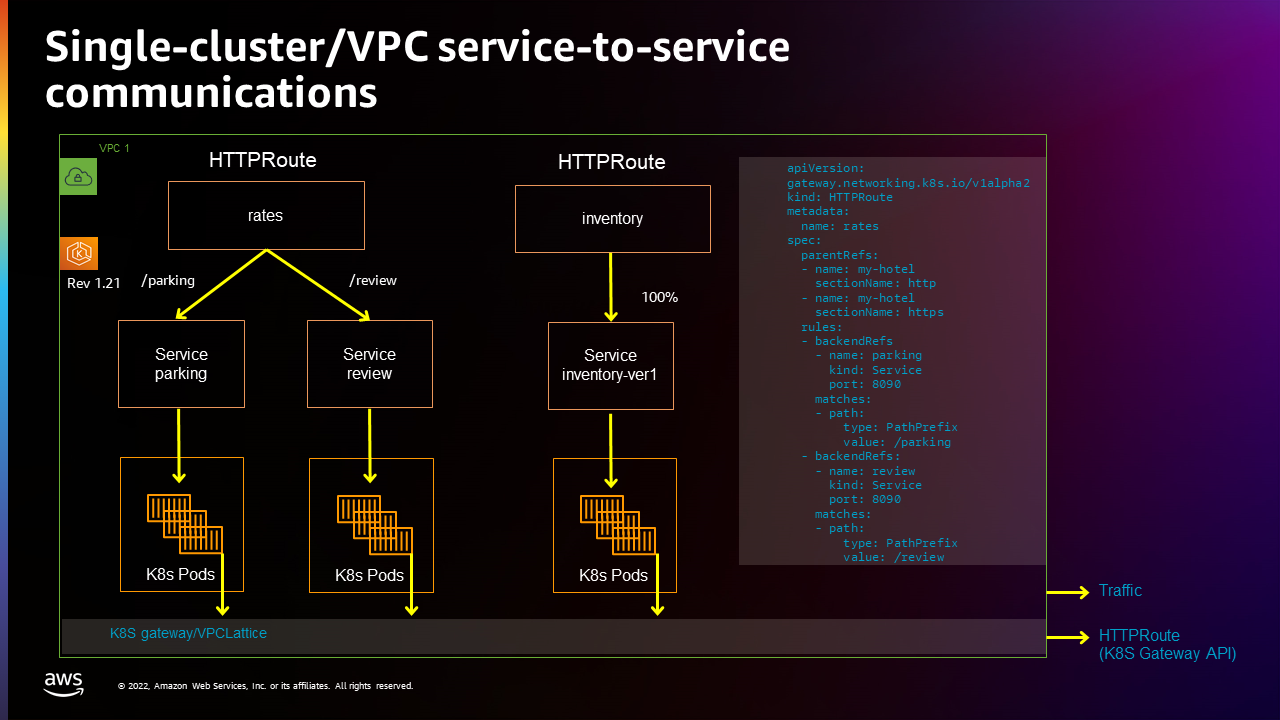

This example creates a single cluster in a single VPC, then configures two HTTPRoutes (rates and inventory) and three kubetnetes services (parking, review, and inventory-1). The following figure illustrates this setup:

Setup in-cluster service-to-service communications

1. AWS Gateway API Controller needs a VPC Lattice service network to operate.

   HelmAWS CLI

   If you installed the controller with helm, you can update chart configurations by specifying the defaultServiceNetwork variable:

   aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws
   helm upgrade gateway-api-controller \
   oci://public.ecr.aws/aws-application-networking-k8s/aws-gateway-controller-chart \
   --version=v1.0.6 \
   --reuse-values \
   --namespace aws-application-networking-system \
   --set=defaultServiceNetwork=my-hotel


   You can use AWS CLI to manually create a VPC Lattice service network association to the previously created my-hotel service network:

   aws vpc-lattice create-service-network --name my-hotel
   SERVICE_NETWORK_ID=$(aws vpc-lattice list-service-networks --query "items[?name=="\'my-hotel\'"].id" | jq -r '.[]')
   CLUSTER_VPC_ID=$(aws eks describe-cluster --name $CLUSTER_NAME | jq -r .cluster.resourcesVpcConfig.vpcId)
   aws vpc-lattice create-service-network-vpc-association --service-network-identifier $SERVICE_NETWORK_ID --vpc-identifier $CLUSTER_VPC_ID


   Ensure the service network created above is ready to accept traffic from the new VPC, by checking if the VPC association status is ACTIVE:

   aws vpc-lattice list-service-network-vpc-associations --vpc-id $CLUSTER_VPC_ID


   {
       "items": [
           {
               ...
               "status": "ACTIVE",
               ...
           }
       ]
   }


2. Create the Kubernetes Gateway my-hotel:

   kubectl apply -f files/examples/my-hotel-gateway.yaml


   Verify that my-hotel Gateway is created with PROGRAMMED status equals to True:

   kubectl get gateway


   NAME       CLASS                ADDRESS   PROGRAMMED   AGE
   my-hotel   amazon-vpc-lattice               True      7d12h


3. Create the Kubernetes HTTPRoute rates that can has path matches routing to the parking service and review service:

   kubectl apply -f files/examples/parking.yaml
   kubectl apply -f files/examples/review.yaml
   kubectl apply -f files/examples/rate-route-path.yaml


4. Create another Kubernetes HTTPRoute inventory:

   kubectl apply -f files/examples/inventory-ver1.yaml
   kubectl apply -f files/examples/inventory-route.yaml


5. Find out HTTPRoute's DNS name from HTTPRoute status:

   kubectl get httproute


   NAME        HOSTNAMES   AGE
   inventory               51s
   rates                   6m11s


6. Check VPC Lattice generated DNS address for HTTPRoute inventory and rates (this could take up to one minute to populate):

   kubectl get httproute inventory -o yaml


       apiVersion: gateway.networking.k8s.io/v1beta1
       kind: HTTPRoute
       metadata:
           annotations:
           application-networking.k8s.aws/lattice-assigned-domain-name: inventory-default-xxxxxx.xxxxx.vpc-lattice-svcs.us-west-2.on.aws
       ...


   kubectl get httproute rates -o yaml


       apiVersion: gateway.networking.k8s.io/v1beta1
       kind: HTTPRoute
       metadata:
           annotations:
           application-networking.k8s.aws/lattice-assigned-domain-name: rates-default-xxxxxx.xxxxxxxxx.vpc-lattice-svcs.us-west-2.on.aws
       ...


7. If the previous step returns the expected response, store VPC Lattice assigned DNS names to variables.

   ratesFQDN=$(kubectl get httproute rates -o json | jq -r '.metadata.annotations."application-networking.k8s.aws/lattice-assigned-domain-name"')
   inventoryFQDN=$(kubectl get httproute inventory -o json | jq -r '.metadata.annotations."application-networking.k8s.aws/lattice-assigned-domain-name"')


   Confirm that the URLs are stored correctly:

   echo "$ratesFQDN \n$inventoryFQDN"


   rates-default-xxxxxx.xxxxxxxxx.vpc-lattice-svcs.us-west-2.on.aws
   inventory-default-xxxxxx.xxxxx.vpc-lattice-svcs.us-west-2.on.aws


Verify service-to-service communications

1. Check connectivity from the inventory-ver1 service to parking and review services:

   kubectl exec deploy/inventory-ver1 -- curl -s $ratesFQDN/parking $ratesFQDN/review


   Requsting to Pod(parking-xxxxx): parking handler pod
   Requsting to Pod(review-xxxxxx): review handler pod


2. Check connectivity from the parking service to the inventory-ver1 service:

   kubectl exec deploy/parking -- curl -s $inventoryFQDN


   Requsting to Pod(inventory-xxx): Inventory-ver1 handler pod


   Now you could confirm the service-to-service communications within one cluster is working as expected.

Multi-cluster

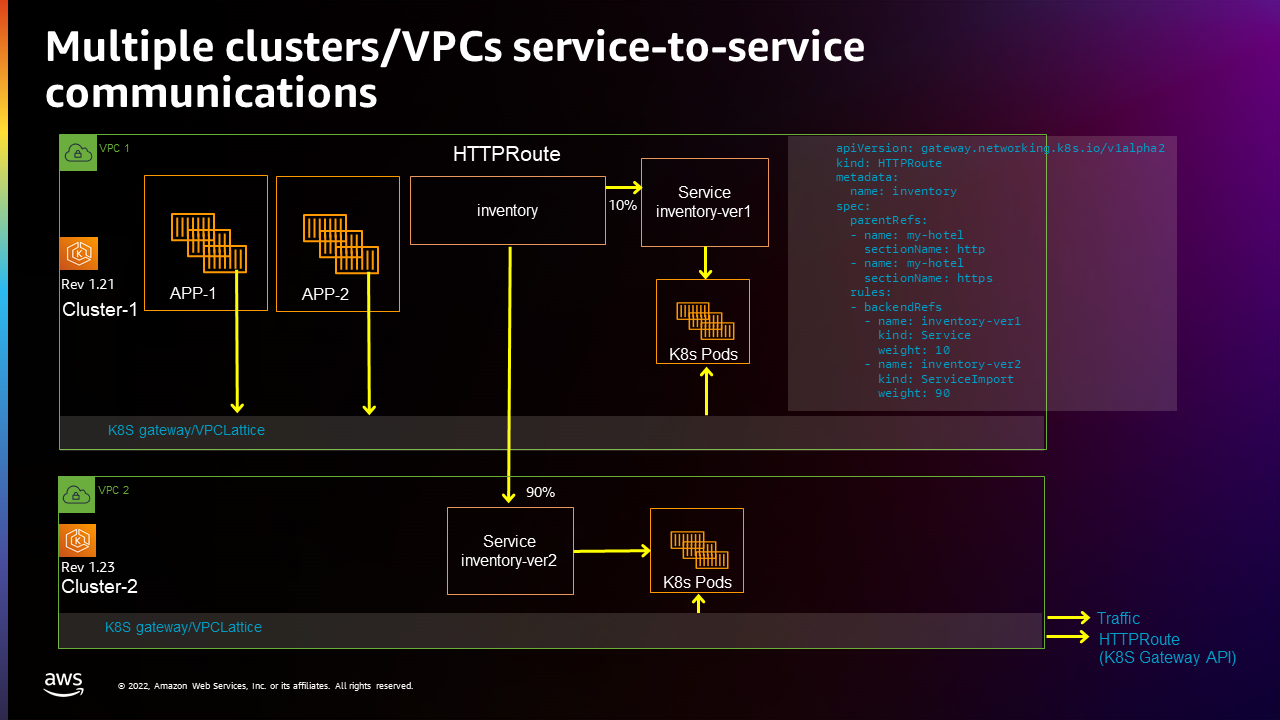

This section builds on the previous one. We will be migrating the Kubernetes inventory service from a the EKS cluster we previously created to new cluster in a different VPC, located in the same AWS Account.

Set up inventory-ver2 service and serviceExport in the second cluster

Warning

VPC Lattice is a regional service, so you will need to create this second cluster in the same AWS Region as gw-api-controller-demo. Keep this in mind when setting AWS_REGION variable in the following steps.

export AWS_REGION=<clusters_region>

1. Create a second Kubernetes cluster gw-api-controller-demo-2 with the Controller installed (using the same instructions to create and install the controller on Amazon EKS used to create the first).

2. For sake of simplicity, lets set some alias for our clusters in the Kubernetes config file.

   aws eks update-kubeconfig --name gw-api-controller-demo --region $AWS_REGION --alias gw-api-controller-demo
   aws eks update-kubeconfig --name gw-api-controller-demo-2 --region $AWS_REGION --alias gw-api-controller-demo-2
   kubectl config get-contexts


3. Ensure you're using the second cluster's kubectl context.

   kubectl config current-context


   If your context is set to the first cluster, switch it to use the second cluster one:

   kubectl config use-context gw-api-controller-demo-2


4. Create the service network association.

   HelmAWS CLI

   If you installed the controller with helm, you can update chart configurations by specifying the defaultServiceNetwork variable:

   aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws
   helm upgrade gateway-api-controller \
   oci://public.ecr.aws/aws-application-networking-k8s/aws-gateway-controller-chart \
   --version=v1.0.6 \
   --reuse-values \
   --namespace aws-application-networking-system \
   --set=defaultServiceNetwork=my-hotel


   You can use AWS CLI to manually create a VPC Lattice service network association to the previously created my-hotel service network:

   SERVICE_NETWORK_ID=$(aws vpc-lattice list-service-networks --query "items[?name=="\'my-hotel\'"].id" | jq -r '.[]')
   CLUSTER_VPC_ID=$(aws eks describe-cluster --name $CLUSTER_NAME | jq -r .cluster.resourcesVpcConfig.vpcId)
   aws vpc-lattice create-service-network-vpc-association --service-network-identifier $SERVICE_NETWORK_ID --vpc-identifier $CLUSTER_VPC_ID


   Ensure the service network created above is ready to accept traffic from the new VPC, by checking if the VPC association status is ACTIVE:

   aws vpc-lattice list-service-network-vpc-associations --vpc-id $CLUSTER_VPC_ID


   {
       "items": [
           {
               ...
               "status": "ACTIVE",
               ...
           }
       ]
   }


5. Create the Kubernetes Gateway my-hotel:

   kubectl apply -f files/examples/my-hotel-gateway.yaml


   Verify that my-hotel Gateway is created with PROGRAMMED status equals to True:

   kubectl get gateway


   NAME       CLASS                ADDRESS   PROGRAMMED   AGE
   my-hotel   amazon-vpc-lattice               True      7d12h


6. Create a Kubernetes inventory-ver2 service in the second cluster:

   kubectl apply -f files/examples/inventory-ver2.yaml


7. Export this Kubernetes inventory-ver2 from the second cluster, so that it can be referenced by HTTPRoute in the first cluster:

   kubectl apply -f files/examples/inventory-ver2-export.yaml


Switch back to the first cluster

1. Switch context back to the first cluster

   kubectl config use-context gw-api-controller-demo


2. Create Kubernetes service import inventory-ver2 in the first cluster:

   kubectl apply -f files/examples/inventory-ver2-import.yaml


3. Update the HTTPRoute inventory rules to route 10% traffic to the first cluster and 90% traffic to the second cluster:

   kubectl apply -f files/examples/inventory-route-bluegreen.yaml


4. Check the service-to-service connectivity from parking(in the first cluster) to inventory-ver1(in in the first cluster) and inventory-ver2(in in the second cluster):

   inventoryFQDN=$(kubectl get httproute inventory -o json | jq -r '.metadata.annotations."application-networking.k8s.aws/lattice-assigned-domain-name"')
   kubectl exec deploy/parking -- sh -c 'for ((i=1; i<=30; i++)); do curl -s "$0"; done' "$inventoryFQDN"


   Requesting to Pod(inventory-ver2-6dc74b45d8-rlnlt): Inventory-ver2 handler pod <----> in 2nd cluster
   Requesting to Pod(inventory-ver2-6dc74b45d8-rlnlt): Inventory-ver2 handler pod
   Requesting to Pod(inventory-ver2-6dc74b45d8-rlnlt): Inventory-ver2 handler pod
   Requesting to Pod(inventory-ver2-6dc74b45d8-rlnlt): Inventory-ver2 handler pod
   Requesting to Pod(inventory-ver2-6dc74b45d8-95rsr): Inventory-ver1 handler pod <----> in 1st cluster
   Requesting to Pod(inventory-ver2-6dc74b45d8-rlnlt): Inventory-ver2 handler pod
   Requesting to Pod(inventory-ver2-6dc74b45d8-95rsr): Inventory-ver2 handler pod
   Requesting to Pod(inventory-ver2-6dc74b45d8-95rsr): Inventory-ver2 handler pod
   Requesting to Pod(inventory-ver1-74fc59977-wg8br): Inventory-ver1 handler pod....


   You can see that the traffic is distributed between inventory-ver1 and inventory-ver2 as expected.

Cleanup

To avoid additional charges, remove the demo infrastructure from your AWS account.

Multi-cluster

Delete resources in the Multi-cluster walkthrough.

Warning

Remember that you need to have the AWS Region set.

export AWS_REGION=<cluster_region>

1. Cleanup VPC Lattice service and service import in gw-api-controller-demo cluster:

   kubectl config use-context gw-api-controller-demo
   kubectl delete -f files/examples/inventory-route-bluegreen.yaml
   kubectl delete -f files/examples/inventory-ver2-import.yaml


2. Delete service export and applications in gw-api-controller-demo-2 cluster:

   kubectl config use-context gw-api-controller-demo-2
   kubectl delete -f files/examples/inventory-ver2-export.yaml
   kubectl delete -f files/examples/inventory-ver2.yaml


3. Delete the service network association (this could take up to one minute):

   CLUSTER_NAME=gw-api-controller-demo-2
   CLUSTER_VPC_ID=$(aws eks describe-cluster --name $CLUSTER_NAME | jq -r .cluster.resourcesVpcConfig.vpcId)
   SERVICE_NETWORK_ASSOCIATION_IDENTIFIER=$(aws vpc-lattice list-service-network-vpc-associations --vpc-id $CLUSTER_VPC_ID --query "items[?serviceNetworkName=="\'my-hotel\'"].id" | jq -r '.[]')
   aws vpc-lattice delete-service-network-vpc-association  --service-network-vpc-association-identifier $SERVICE_NETWORK_ASSOCIATION_IDENTIFIER


Single cluster

Delete resources in the Single cluster walkthrough.

Warning

Remember that you need to have the AWS Region set.

export AWS_REGION=<cluster_region>

1. Delete VPC Lattice services and applications in gw-api-controller-demo cluster:

   kubectl config use-context gw-api-controller-demo
   kubectl delete -f files/examples/inventory-route.yaml
   kubectl delete -f files/examples/inventory-ver1.yaml
   kubectl delete -f files/examples/rate-route-path.yaml
   kubectl delete -f files/examples/parking.yaml
   kubectl delete -f files/examples/review.yaml
   kubectl delete -f files/examples/my-hotel-gateway.yaml


2. Delete the service network association (this could take up to one minute):

   CLUSTER_NAME=gw-api-controller-demo
   CLUSTER_VPC_ID=$(aws eks describe-cluster --name $CLUSTER_NAME | jq -r .cluster.resourcesVpcConfig.vpcId)
   SERVICE_NETWORK_ASSOCIATION_IDENTIFIER=$(aws vpc-lattice list-service-network-vpc-associations --vpc-id $CLUSTER_VPC_ID --query "items[?serviceNetworkName=="\'my-hotel\'"].id" | jq -r '.[]')
   aws vpc-lattice delete-service-network-vpc-association  --service-network-vpc-association-identifier $SERVICE_NETWORK_ASSOCIATION_IDENTIFIER


Cleanup VPC Lattice Resources

1. Cleanup controllers in gw-api-controller-demo and gw-api-controller-demo-2 clusters:

   HelmKubectl

   kubectl config use-context gw-api-controller-demo
   CLUSTER_NAME=gw-api-controller-demo
   aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws
   helm uninstall gateway-api-controller --namespace aws-application-networking-system
   kubectl config use-context gw-api-controller-demo-2
   CLUSTER_NAME=gw-api-controller-demo-2
   aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws
   helm uninstall gateway-api-controller --namespace aws-application-networking-system


   kubectl config use-context gw-api-controller-demo
   kubectl delete -f https://raw.githubusercontent.com/aws/aws-application-networking-k8s/main/files/controller-installation/deploy-v1.0.4.yaml
   kubectl config use-context gw-api-controller-demo-2
   kubectl delete -f https://raw.githubusercontent.com/aws/aws-application-networking-k8s/main/files/controller-installation/deploy-v1.0.4.yaml


2. Delete the service network:

   1. Ensure the service network associations have been deleted (do not move forward if the deletion is still IN PROGRESS):

      SN_IDENTIFIER=$(aws vpc-lattice list-service-networks --query "items[?name=="\'my-hotel\'"].id" | jq -r '.[]')
      aws vpc-lattice list-service-network-vpc-associations --service-network-identifier $SN_IDENTIFIER


   2. Delete my-hotel service network:

      aws vpc-lattice delete-service-network --service-network-identifier $SN_IDENTIFIER


   3. Ensure the service network my-hotel is deleted:

      aws vpc-lattice list-service-networks


Cleanup the clusters

Finally, remember to delete the clusters you created for this walkthrough:

1. Delete gw-api-controller-demo cluster:

   eksctl delete cluster --name=gw-api-controller-demo
   k config delete-context gw-api-controller-demo


2. Delete gw-api-controller-demo-2 cluster:

   eksctl delete cluster --name=gw-api-controller-demo-2
   k config delete-context gw-api-controller-demo-2
